Automotive ESD Suppressors

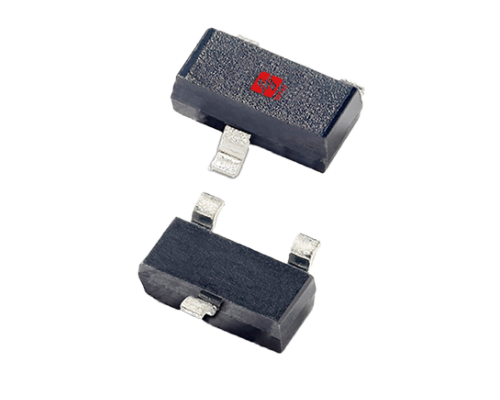

PESD2CANActive

The PESD2CAN is a high-performance TVS diode designed to protect CAN and CAN-FD transceivers from electrostatic discharge (ESD) and voltage surges.Ideal for automotive and industrial applications.

Datasheet Inquire Now

Electrical Parameters

Part Number PESD2CAN

Package SOT-23

AEC Qualified Yes

Vrwm [Max] (V) 24

Vbr [Min] (V)26.7

Vc @Ipp [Max] (V)52

Ipp [Max] (A) 7

Vesd [Contact] (KV) 30

Vesd [Air] (KV) 30

IR [max] (uA) 1

CJ [Typ] (pF) 50

TJ (°C) -55 to +150

Status Active

Product Features

High ESD Protection up to ±30 kV (IEC 61000-4-2) Low Capacitance (Typically 50 pF) Wide Working Voltage Range (Up To 24 V) Automotive-Grade Reliability (AEC-Q101 Qualified) Compact SOT-23 Package for Space-Saving Designs PESD2CAN Optimized for CAN Bus Systems
