Fast Recovery Diode

MUR1660DCActive

The MUR1660DC fast recovery diode product adopts TO-263 standard packaging with strong stability high reliability low leakage current and provides rectification function in most electronic applications. Widely used in industrial control network communication security monitoring and consumer electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number MUR1660DC

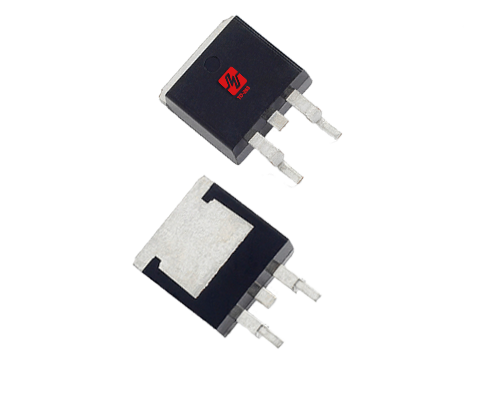

Package TO-263

AEC-Q101 Qualified No

VRRM [Max] (V) 600

VRMS [Max] (V) -

IF(AV) [Max] (A) -

IFSM [Max] (A) 160

VF [Max] (V) 1.6

Trr [Max] (ns) 35

IR [max] (uA) 3

CJ [Typ] (PF) -

TJ (°C) 175

Status Active

Product Features

High speed switching capability High current capability High forward surge capability Low power losses，High efficiency High reliability For use in low voltage, high frequency inverters
