Standard Bidirectional Thyristor

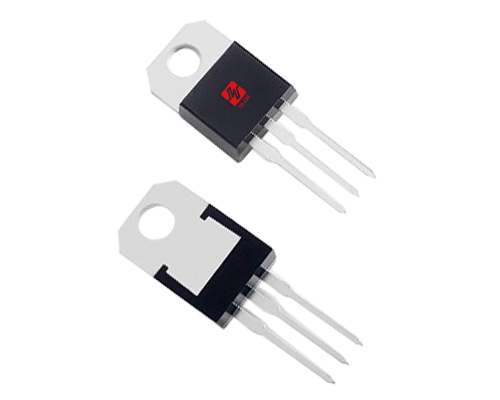

BTA16-800BWActive

The BTA16-800BW is a 16A, 800V snubberless triac designed for robust AC power control in industrial and consumer electronics.This three-terminal bidirectional thyristor adopts snubberless technology, optimizing high-current switching performance with minimal external components, often eliminating the need for an external RC snubber network in many applications. With a low gate trigger current, it ensures reliable switching in dimmer circuits, motor controllers, solid-state relays, and heating systems.

Datasheet Inquire Now

Electrical Parameters

Part Number BTA16-800BW

Package TO-220A

VDRM [Min] (V)800

VRRM [Min] (V)800

IT(RMS) [Min] (A)16

ITSM [Min] (A)160

VTM [Max] (V)1.5

IGT_I [max] (mA) 50

IGT_II [max] (mA) 50

IGT_III [max] (mA) 50

Tj (°C) -40~+125

Status Active

Product Features

High On-State Current Low Thermal Resistance Low Gate Triggering Current Insulated Package Snubberless Design RoHS Compliant
