Standard Bidirectional Thyristor

BTA16-800CWActive

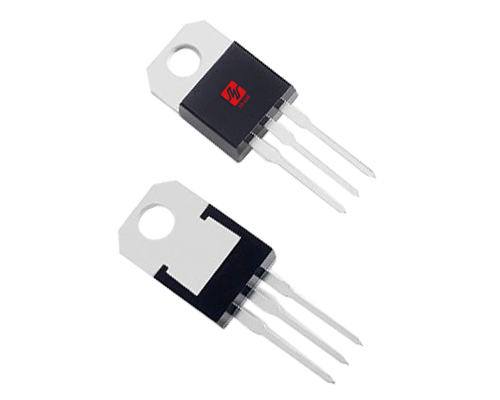

The BTA16-800CW is a 16A, 800V snubberless triac designed for high-voltage AC power control in demanding applications. It features an isolated TO-220A package, making it suitable for motor drives, industrial heaters, lighting systems, and solid-state relays.

Datasheet Inquire Now

Electrical Parameters

Part Number BTA16-800CW

Package TO-220A

VDRM [Min] (V)800

VRRM [Min] (V)800

IT(RMS) [Min] (A)16

ITSM [Min] (A)160

VTM [Max] (V)1.5

IGT_I [max] (mA) 35

IGT_II [max] (mA) 35

IGT_III [max] (mA) 35

Tj (°C) -40~+125

Status Active

Product Features

High On-State Current Low Thermal Resistance Low Gate Triggering Current Insulated Package Snubberless Design RoHS Compliant
