General Thyristor

P0080SC-2CActive

The P0080SC-2C thyristor products utilizing SMB-T standard packaging feature low junction capacitance minimal leakage current robust surge absorption capability and strong stability. Widely applied in fields including network communication security monitoring industrial control computers and consumer electronics these products serve for overvoltage protection at data interfaces or power supply terminals.

Datasheet Inquire Now

Electrical Parameters

Part Number P0080SC-2C

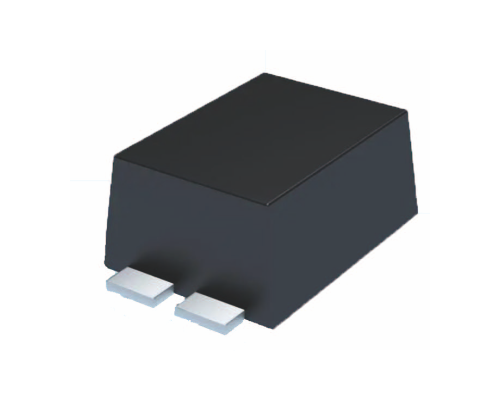

Package SMB-T

VDRM [Min] (V) 6

VS [Max] (V) 25

@IS (mA) 800

VT [Max] (V) 4

@IT (A) 2.2

IH [Min] (mA) 15

IPP @10x1000us (A) 100

VPP @10x700us (V) 6000

IDRM [max] (uA) 5

CO [max] (pF) 120

Status Active

Product Features

Excellent capability of absorbing transient surge Quick response to surge voltage（nS Level） Eliminates overvoltage caused by fast rising transients
