General-Purpose TVS Diode

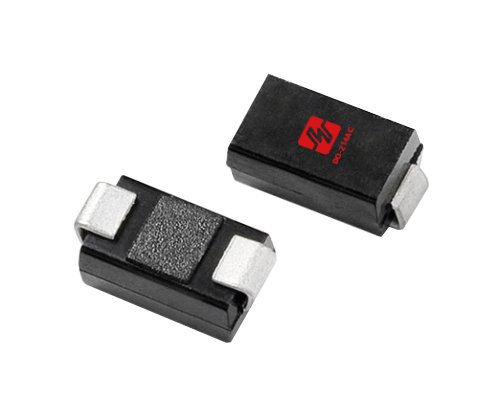

SMAJ7.0CAActive

This TVS diode is a high-quality,fully compatible equivalent to the SMAJ7.0CA device,designed for bidirectional protection of sensitive electronics against voltage transients induced by lightning,inductive load switching,and electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number SMAJ7.0CA

Package SMA

Polar Bi

Vrwm [Max] (V) 7

Vbr [Min] (V) 7.78

Vbr [Max] (V) 8.6

@ IT (mA)10

Vc@Ipp [Max] (V) 12

Ipp [Max] (A) 33.3

Ppp [Min] (W) 400

IR [Max] (uA)200

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
