Rectifier Diode

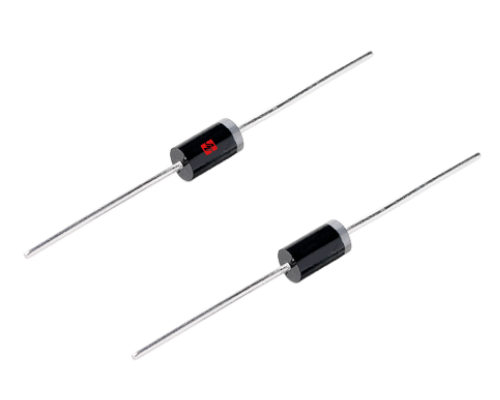

1N5400Active

The 1N5400 diode is designed for power rectification with a maximum reverse voltage of 50V, a forward current of 3A, and a surge capability up to 200A. It provides strong performance, making it ideal for power supplies, chargers, and other high-current rectifier applications.

Datasheet Inquire Now

Electrical Parameters

Part Number 1N5400

Package DO-201

AEC-Q101 Qualified No

VRRM [Max] (V) 50

VRMS [Max] (V) 35

IF(AV) [Max] (A) 3

IFSM [Max] (A) 200

VF [Max] (V) 1

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 50

TJ (°C) -55~+150

Status Active

Product Features

High Reverse Voltage 50V High Forward Current 3A High Surge Current 200A Low Reverse Leakage 5μA Wide Operating Temperature Range -55~+150°C 1N5400 DO-201 Package
