Rectifier Diode

M2Active

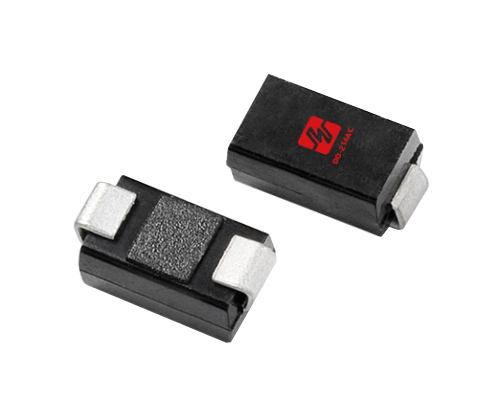

The M2 rectifier diode provides reliable performance with a 100V reverse voltage and 1A forward current. Its low forward voltage drop and high surge capability ensure efficient and safe operation in a variety of circuits. Packaged in a compact DO-214AC (SMA), it is ideal for both industrial and consumer electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number M2

Package SMA

AEC-Q101 Qualified No

VRRM [Max] (V) 100

VRMS [Max] (V) 70

IF(AV) [Max] (A) 1

IFSM [Max] (A) 30

VF [Max] (V) 1.1

Trr [Max] (ns) -

IR [max] (mA) 5

Cj [Typ] (PF) 65

TJ (°C) -55~+150

Status Active

Product Features

High Reverse Voltage 100V Low Forward Voltage Drop 1.1V High Surge Current Capability 30A Low Forward Current 1A M2 DO-214AC Surface-Mount Package M2 Diode High Reliability
