Schottky Diode

1N5817Active

The 1N5817 is a popular Schottky diode known for its fast switching speed and low forward voltage drop, making it ideal for power supply circuits, reverse polarity protection, and high-efficiency rectification. With a maximum repetitive peak reverse voltage of 20V and an average forward current of 1A, the 1N5817 delivers exceptional performance in low-voltage, high-frequency applications.

Datasheet Inquire Now

Electrical Parameters

Part Number 1N5817

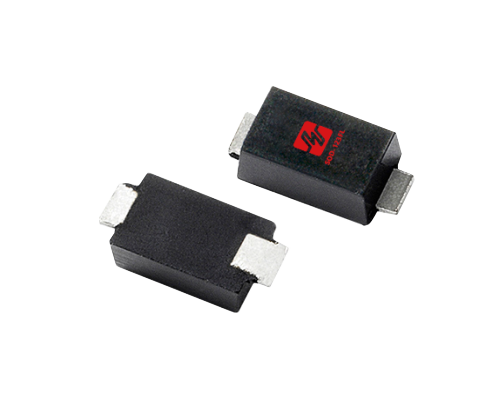

Package SOD-123FL

AEC-Q101 Qualified No

VRRM [Max] (V) 20

VRMS [Max] (V) 14

IO [Max] (A) -

IFSM [Max] (A) 30

VF [Max] (V) 0.55

IR [max] (mA) 0.2

TJ (°C) -55~+125

Status Active

Product Features

Low Forward Voltage Drop Low Reverse Leakage High Surge Current Capability Fast Switching Speed Surface Mount Package ROHS Compliant
