Schottky Diode

SS54AActive

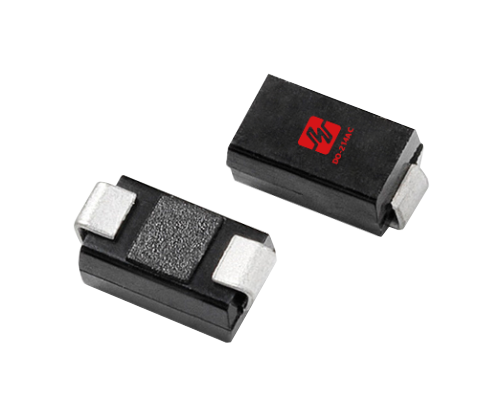

The SS54A is a high-performance Schottky diode in a compact SMA package.With a low forward voltage drop (VF ~0.55V @5A) and ultra-fast switching capability, it minimizes power loss and enhances efficiency in high-frequency circuits.Which making it ideal for power supply circuits, reverse polarity protection and high-efficiency applications.

Datasheet Inquire Now

Electrical Parameters

Part Number SS54A

Package SMA

AEC-Q101 Qualified No

VRRM [Max] (V) 40

VRMS [Max] (V) 28

IO [Max] (A) 5

IFSM [Max] (A) 100

VF [Max] (V) 0.55

IR [max] (mA) 0.5

TJ (°C) -55~+150

Status Active

Product Features

High Current Handling High Surge Capability Low Reverse Leakage Current Fast Switching Ideal For Automated Placement RoHS Compliant
