Schottky Diode

TSP1060Active

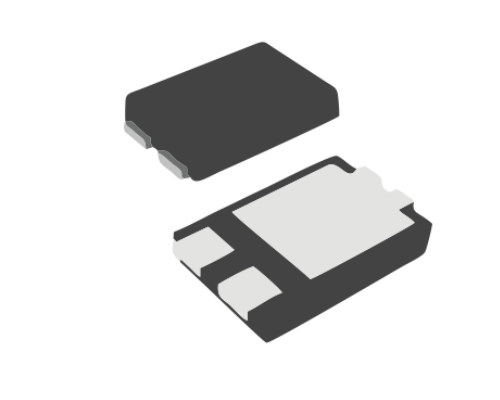

TSP1060 Schottky diode adopts TO-277B standard package.It has strong stability, high reliability and low leakage current. With pressure protection and low forward voltage drop, it adopts ultra-small and thin surface mount package. Ideal for reverse polarity protection, low voltage rectification and DC-DC conversion power management applications.

Datasheet Inquire Now

Electrical Parameters

Part Number TSP1060

Package TO-277B

AEC-Q101 Qualified No

VRRM [Max] (V) 60

VRMS [Max] (V) 42

IO [Max] (A) 10

IFSM [Max] (A) 150

VF [Max] (V) 0.64

IR [max] (mA) 0.1

TJ (°C) -55~+150

Status Active

Product Features

Guardring for Overvoltage Protection Low Power Losses Extremely Fast Switching High Forward Surge Capability High Frequency Operation RoHS Compliant
