Small Signal MOSFET

BSS138Active

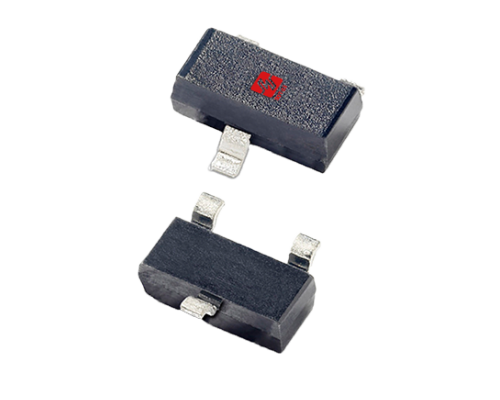

The BSS138 is a N-channel enhancement-mode MOSFET designed for low-voltage, low-power applications. It is widely used in switching circuits, signal amplification, and logic-level conversion due to its small size, low on-resistance, and compatibility with low-voltage control signals.

Datasheet Inquire Now

Electrical Parameters

Part Number BSS138

Package SOT-23

AEC-Q101 QualifiedNo

Channel Type N

With ESD No

VDS [Max] (V) 50

VGS [Max] (V) ±20

ID [Max] (A) 0.22

RDS(ON)@10V
[Typ] (mΩ) 1

RDS(ON)@10V
[Max] (mΩ) 3

RDS(ON)@4.5V
[Typ] (mΩ) 1.1

RDS(ON)@4.5V
[Max] (mΩ) 5

RDS(ON)@2.5V
[Typ] (mΩ) -

RDS(ON)@2.5V
[Max] (mΩ) -

PD [Max] (W) 0.35

TJ (°C) -55～+150

Status Active

Product Features

Logic-Level Gate Drive Low Gate Threshold Voltage Low On-Resistance Fast Switching Speed Compact SOT-23 Package RoHS Compliant
