Small Signal MOSFET

SNPMN66Y06QYNew

The SNPMN66Y06QY series N+P channel MOSFET, packaged in PDFN3.3x3.3-8L. The product features low on-resistance and is particularly suitable for applications in fields such as network communication, security monitoring, laptops, mobile phones, TWS Bluetooth headphones, smart lighting, industrial power supplies, etc. It enables fast switching and low power loss within small surface-mount packages.

Datasheet Inquire Now

Electrical Parameters

Part Number SNPMN66Y06QY

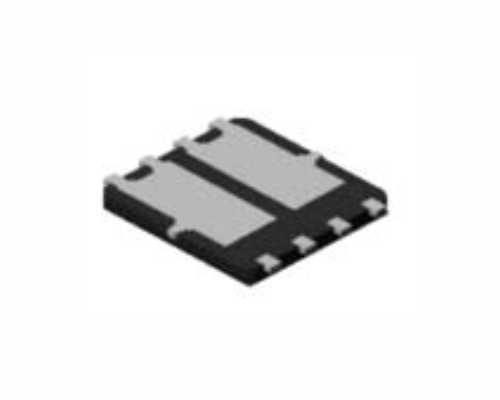

Package PDFN3.3x3.3-8L

AEC-Q101 QualifiedNo

Channel Type N+P

With ESD No

VDS [Max] (V) 60

VGS [Max] (V) ±20

ID [Max] (A) 15.7

RDS(ON)@10V
[Typ] (mΩ) 32

RDS(ON)@10V
[Max] (mΩ) 40

RDS(ON)@4.5V
[Typ] (mΩ) 38

RDS(ON)@4.5V
[Max] (mΩ) 50

RDS(ON)@2.5V
[Typ] (mΩ) -

RDS(ON)@2.5V
[Max] (mΩ) -

PD [Max] (W) 20.8

TJ (°C) -55～+150

Status New

Product Features

Surface-mounted package Advanced trench cell design RoHS compliant
