Small Signal Transistor

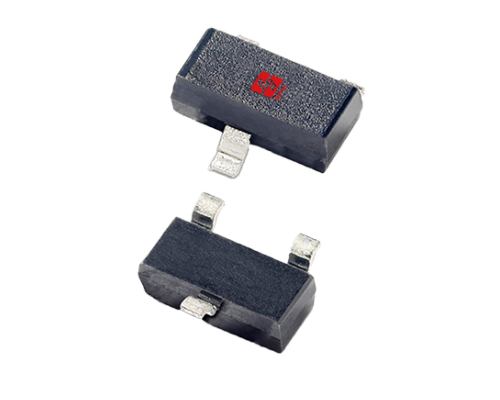

MMBT2222AActive

The MMBT2222A is a high-performance NPN bipolar junction transistor (BJT) in a compact SOT-23 surface-mount package. Ideal for general-purpose amplification and switching, it features high current gain, low saturation voltage, and fast switching speeds.

Datasheet Inquire Now

Electrical Parameters

Part Number MMBT2222A

Package SOT-23

AEC-Q101 QualifiedNo

Type NPN

PCM(W) 0.3

IC(A) 0.6

VCBO [Max] (V) 75

VCEO [Max] (V) 40

VEBO [Max] (V) 6

hFE [Min] 100

hFE [Max] 300

fT [Min] (MHz) 300

TJ (°C) -55~+150

Status Active

Product Features

Low Saturation Voltage High Reliability High Stability Surface-Mount SOT-23 Package NPN Bipolar Junction Transistor RoHS Compliant
