Small Signal Switching Transistor

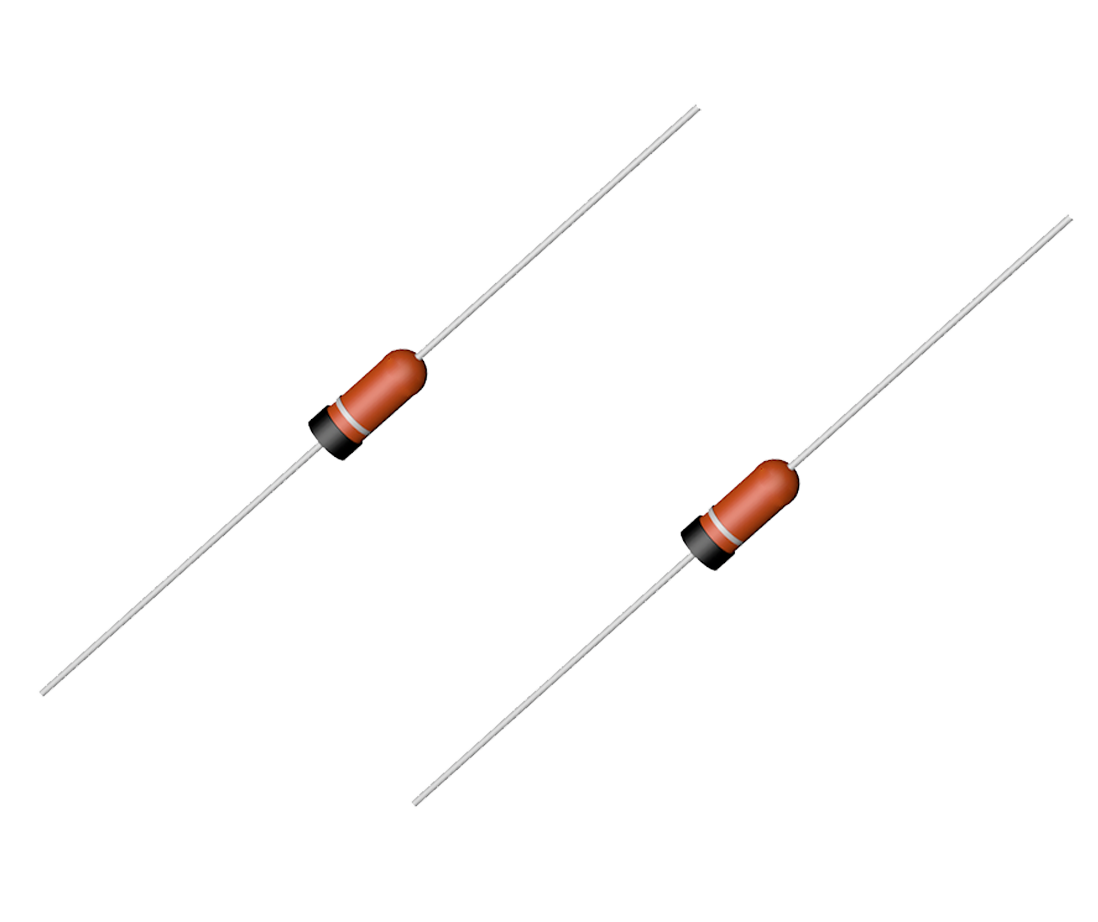

1N4148Active

1N4148W is a high-performance small-signal fast-switching diode in a compact DO-35 glass package. It is widely used in signal processing, rectification, protection and switching applications in electronic circuits due to its ultra-fast reverse recovery time of 4ns, low forward voltage drop and high reliability.

Datasheet Inquire Now

Electrical Parameters

Part Number 1N4148

Package DO-35

AEC-Q101 Qualified No

VRRM [Max] (V) 100

VRMS [Max] (V) 75

IO [Max] (A) 200

IFSM [Max] (A) 4.0

VF [Max] (V) 1

IR [max] (mA) 5

Trr [Max] (ns) 4

TJ (°C) 200

Status Active

Product Features

Fast Reverse Recovery Time High Reverse Voltage Stable Forward Conduction Capability Low Forward Voltage Drop DO-35 Small Glass Package Small Signal Processing Capability
