TVS Diode Array

SE33T20B24BActive

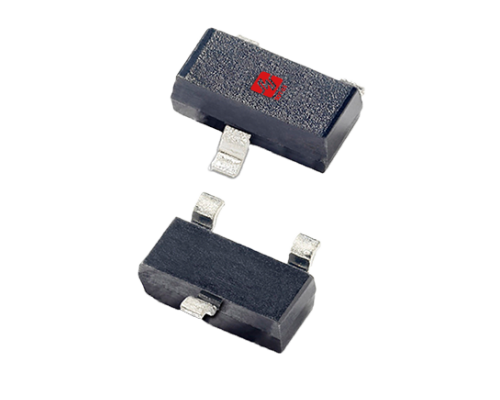

The SE33T20B24B electrostatic suppressor product utilizing SOT-323 standard packaging features low leakage current fast response time (in nanoseconds) high reliability etc. It is widely applied in HDMI, USB, VGA and other high-speed signal transmission interface ESD static protection safeguarding each input/output pin offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number SE33T20B24B

Package SOT-323

Vrwm [Max] (V) 24

Vbr [Min] (V)26.7

Vc@Ipp [Max] (V)50

Ipp [Max] (A)4

Vesd [Contact] (KV)±30

Vesd [Air] (KV)±30

IR [max] (uA)1

Cj [max] (pF)12

TJ (°C)-55～+150

Status Active

Product Features

200W Peak Pulse Power (tp=8/20μs) Protects tow I/O lines Working voltages : 24 V
