TVS Diode Array

SE38F06U5.0UHActive

The SE38F06U5.0UH electrostatic suppressor product utilizing DFN3810-9L standard packaging features low leakage current fast response time (in nanoseconds) high reliability etc. It is widely applied in HDMI, USB, VGA and other high-speed signal transmission interface ESD static protection safeguarding each input/output pin offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number SE38F06U5.0UH

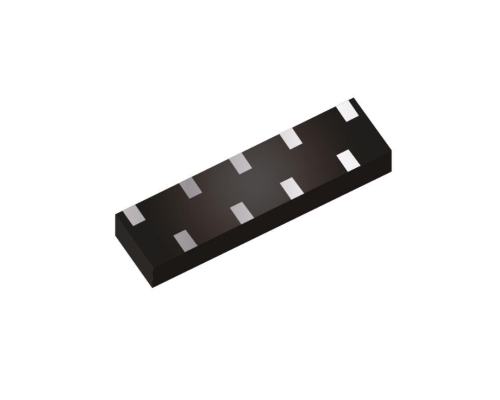

Package DFN3810-9L

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)15

Ipp [Max] (A)4

Vesd [Contact] (KV)±20

Vesd [Air] (KV)±25

IR [max] (uA)1

Cj [max] (pF)0.4

TJ (°C)-55～+125

Status Active

Product Features

60W Peak Pulse Power per Line (tp=8/20µs) Package optimized for high-speed lines Protects eight data lines
