TVS Diode Array

SE53T10U3.6MDActive

The SE3D35B20A electrostatic suppressor product utilizing SOT-353 standard packaging features low leakage current fast response time (in nanoseconds) high reliability etc. It is widely applied in HDMI, USB, VGA and other high-speed signal transmission interface ESD static protection safeguarding each input/output pin offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number SE53T10U3.6MD

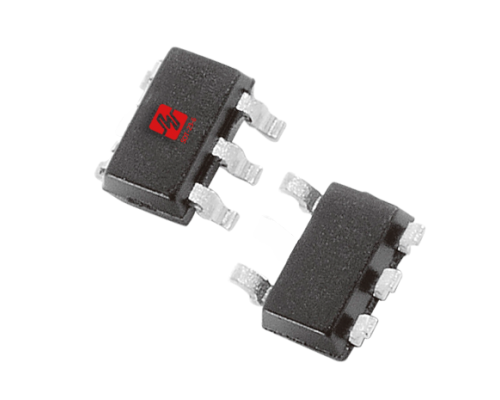

Package SOT-353

Vrwm [Max] (V) 3.6

Vbr [Min] (V)4.5

Vc@Ipp [Max] (V)7.5

Ipp [Max] (A)12

Vesd [Contact] (KV)±30

Vesd [Air] (KV)±30

IR [max] (uA)0.1

Cj [max] (pF)1.2

TJ (°C)-40～+125

Status Active

Product Features

78W Peak Pulse Power per Line (tp=8/20μs) Protects Four I/O Lines Low Clamping Voltage
