TVS Diode Array

SE9D04B3.3AActive

The SE9D04B3.3A electrostatic suppressor product utilizing SOD-923 standard packaging features low leakage current fast response time (in nanoseconds) high reliability etc. It is widely applied in HDMI, USB, VGA and other high-speed signal transmission interface ESD static protection safeguarding each input/output pin offering advanced protection for electronic devices susceptible to destructive electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number SE9D04B3.3A

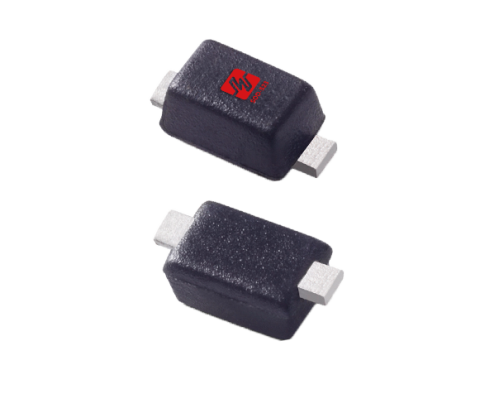

Package SOD-923

Vrwm [Max] (V) 3.3

Vbr [Min] (V)5

Vc@Ipp [Max] (V)19

Ipp [Max] (A)2.3

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)2.5

Cj [max] (pF)18

TJ (°C)-55～+125

Status Active

Product Features

44W Peak Pulse Power per Line (tp=8/20μs) Low clamping voltage Working voltages : 3.3 V
