TVS Diode Array

SR05Active

Protect your high-speed interfaces with the SR05 TVS Diode — a unidirectional ESD suppressor engineered for precision and reliability.With low capacitance, fast response time, and superior clamping performance, SR05 ESD diode is ideal for protecting USB, Ethernet, SIM, and other sensitive lines. Whether you're designing for consumer electronics or industrial systems, the device offers the protection your circuits demand.

Datasheet Inquire Now

Electrical Parameters

Part Number SR05

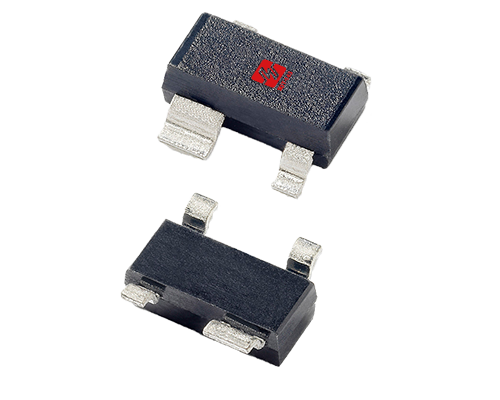

Package SOT-143

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)25

Ipp [Max] (A)5

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)2

TJ (°C)-55～+150

Status Active

Product Features

Low Leakage Current Low Clamping Voltage Fast Response Time Low Capacitance Compact SOT-143 Package RoHS compliant
